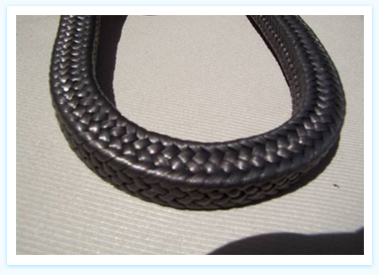

PTFE Teflon® Graphite Packing

PTFE Teflon® Graphite Packing
PTFE Teflon Packing

PTFE Teflon yarn coated with graphite and lubricated with an inert high temperature lubricant.

Advantages :
• Less gland adjustment, easy break-in & even compression in all rings.
• Six times better heat conduction as against pure P.T.F.E packings at comparatively high speeds.
• Significantly low thermal expansion thus resisting 'over expansion' extrusion under service.

Typical Applications :
Acids, alkalis, solvents, hydrocarbons, inorganic chemical handling equipments. Steam valves, metering pumps, reactors, mixers, autoclave glands.
Application parameters :

Properties

1

2

3

pH

0 - 14

Temperature (0C)

- 240 To + 300

Pressure (Bar)

150

125

300

Velocity (m/s)

25

3

---

Sizes

6mm To 55 mm

Note : Available in Rope & Ring Form
