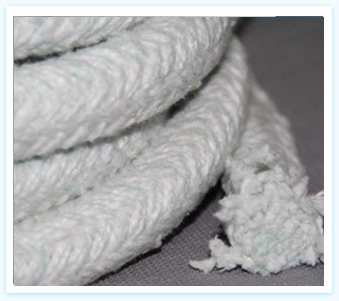

Ceramic Fiber Braided Rope

Ceramic Fiber Braided Rope

Our firm holds an outstanding position in the market as the manufacturer, supplier and exporter of Ceramic Fiber Rope. These products are made from an exceptionally stable fiber material that is soft, non-irritating and non-hazardous in nature. Extensively used in very high temperature static sealing duties or slow rotary applications, these products replaces ceramic yarn packing and radiation seals in BOS plant. Known for their premium quality, these products are also used as kiln packing, stem gland sealing on valves handling very high temperature gases and door seals for annealing furnaces at steelworks and protective surfaces on pottery kiln cars. Ceramic Fiber Rope can resist high temperatures hence, it is used for thermal insulation & heat resistant duties where flexibility & resilience are required.
Features:

  • Non-hazardous heat resistant fiber construction
  • 1000°C for constant duties, with excursions to 1100°C
  • Competitively priced alternative to normal ceramic fiber packings
    • Far better value for money than other non-hazardous high temperature materials, such as those made of pure silica fiber
  • Good chemical compatibility

Application Areas:

  • Ceramic packings & vessel lid seals on secondary steel making plant
    • Braided insulation sleeves, webbing tapes, ladder tapes, twisted ropes, lagging ropes, blankets and paper and woven cloth

Other details:
These heat resistant fibres are produced using advanced chemical fibre technology. They are spun into a flexible yarn in the UK, together with a low percentage of glass fibre and Inconel wire reinforcement.
Ceramic Fiber Rope, Tape, Cloth contains no organic agents or processing additives. It therefore retains its physical and chemical properties at very high temperatures and does not decompose into hazardous substances, as happens with many normal ceramics.



Health & Safety considerations
Average diameter of the mineral fibre used in Ceramic Fiber product Hi-Temp is 9µm which is considered non-hazardous to health. No protection for breathing, eye, hand or body is required by the World Health Organisation or European Union during the product's normal storage, handling and use.

  • Service capabilities - static and slow rotary duties only
  • Maximum temperature (constant): +1000°C
  • Maximum temperature (intermittent): +1100°C
  • Minimum working temperature: -50°C

How supplied:
Hi-Temp is available as densely braided compression packings - square, round and rectangular - in sections from 5mm to 200mm, and in any length. Full fitting instructions are included.





Technical Details



Price

Based On Quantity

Min Quantity

50 Kgs.

Supply Ability

18-20 MT. Per Month

Payment Terms

100% Against Performa-Invoice

Place of Origin

Mumbai, India

Brand Name

Challenge

Product Grade No.

CC 135

Certificate

IS 14656 & BS 1902 Cover under ASTM C – 892

Application

Pipe Wrapping, Expansion Joints, High Temperature Seals or Gaskets, for annealing furnaces

Thickness

6mm to 150mm

Section

Round, Square & Rectangular

Grade

AAA

Chemical Composition

Al2O3>48%

Working Temperature

1260`C

Fiber Diameter

2-5um

Thermal Conductivity

0.12-0.2w/(m.k)

Loss on ignition

<18%

Moisture Content (%)

≤1

Warp Density

48~60 Piece/10cm

Weft Density

21~30 Piece/10cm

Organic Content (%)

≤15

Sample Availability:

Yes

Delivery Lead Times

Depend upon Quantity

Delivery Terms:

Depend upon Quantity

Main Markets

Saudi-Arabia, USA, Europe, UAE, Sri Lankan, Africa, South America

Currency

$USD
