PTFE Teflon® & Aramid Kevlar Corner Packing

PTFE Teflon® & Aramid Kevlar Corner Packing
PTFE Teflon Packing

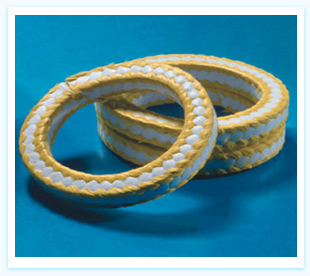

PTFE Aramid is a super combination Cross Braided Packing specially designed with lubricated pure PTFE on the faces and special yellow synthetic fibre filaments on the corners. Due to its multifibre dense and homogeneous construction the packing is most suited to all fluids including corrosive chemicals, even under extremely high pressure conditions. The packing has exceptionally good dimensional stability, creep resistance and non-toxic. The packing will not provide extraneous stresses on plungers which damage both packing and plunger under high pressure conditions.



Application :
Recommended for use in dairies, foodstuff, beverages, pharmaceutical industries and refineries. A good packing for high pressure pump handling carbonate and ammonia solutions in the fertilizer industry, miscellaneous chemicals in the petrochemical industry, feed water pumps, etc.

Service Parameters

Temp.

ph

Pressure

Velocity

° C

Range

Kg/cm2

Mtrs/sec

-200 to +260

2-12

180

12

Note : Available in Rope & Ring Form
